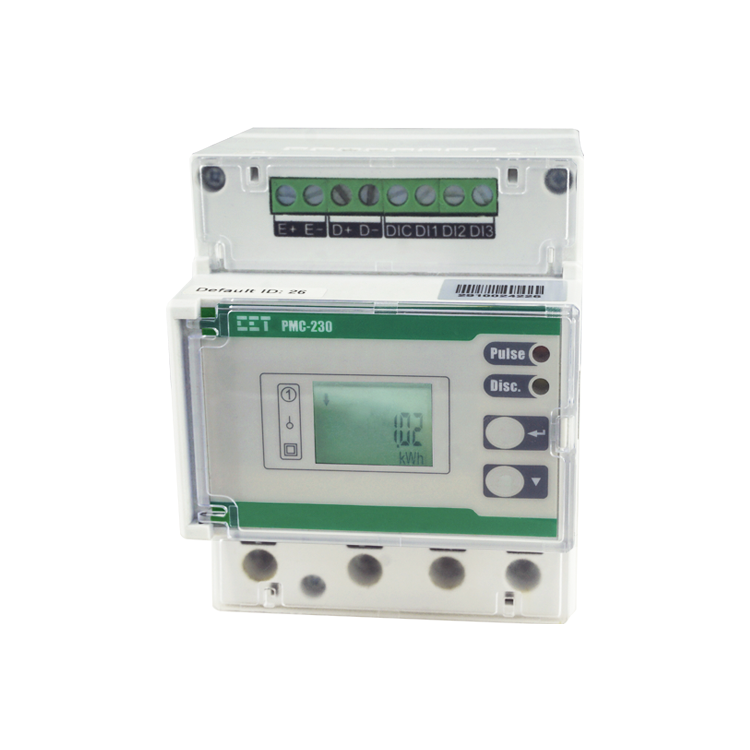

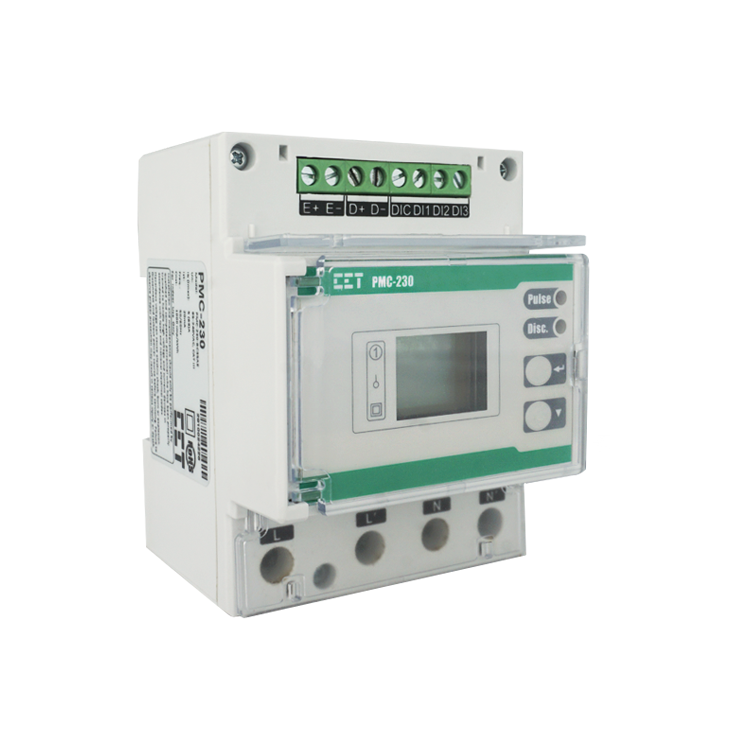

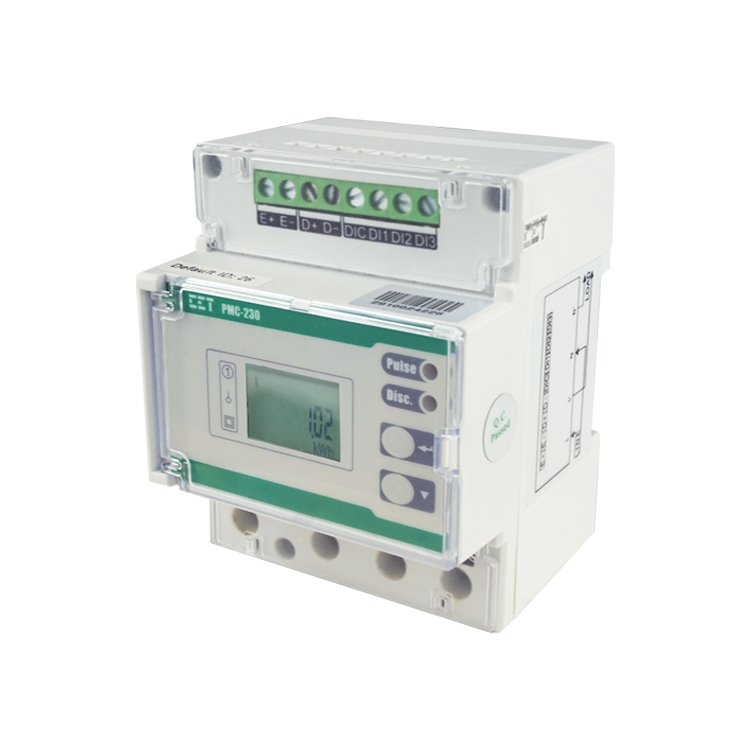

CET PMC-230 Single-Phase Multifunction Meter with Relay (DIN Rail mount)
SKU: PMC-230The PMC-230 Single-Phase Multifunction Meter is CET’s latest offer for the low voltage energy metering market featuring DIN-Rail mount, compact construction, 65A Max. direct connected with an internal UC2 Disconnect Relay compliant with the Australia National Electricity Rules (NER) schedule 7.5 for the ability to disconnect/re-connect from the supply.
The PMC-230 also complies with the IEC 62053-21: 2020 & AS 62053.21: 2023 Class 1 kWh Accuracy Standard and has received the certificate of approval from the National Measurement Institute (NMI) of Australia for compliance with the NMI M13-1 Active-Energy Electricity Meters (a.c.), Part 1: Metrological and Technical Requirements.

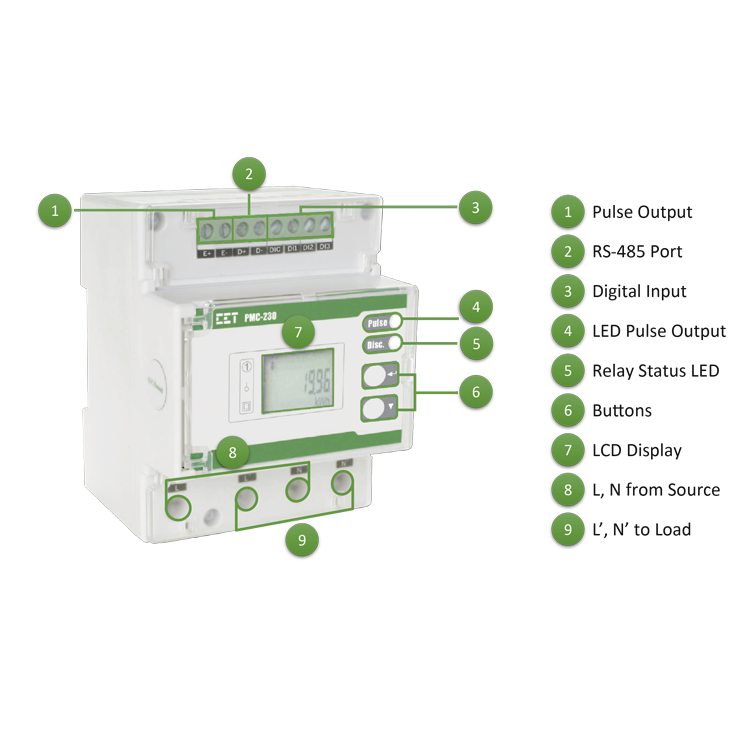

The PMC-230 provides 4MB Log Memory for Data Recording, 3xDI for Status Monitoring or Pulse Counting, 1xLED and 1xSS Pulse Output for energy pulsing.
Further, the standard RS-485 port supporting Modbus RTU protocol with password protection allows the PMC-230 to become a vital component of an intelligent, multifunction monitoring solution for any secured Energy Management Systems.
Features
- Single-Phase Multifunction Meter
- IEC62053-21 Class 1 (65A Direct Input), NMI (Australia) Approval
- Internal 100A Disconnect Relay

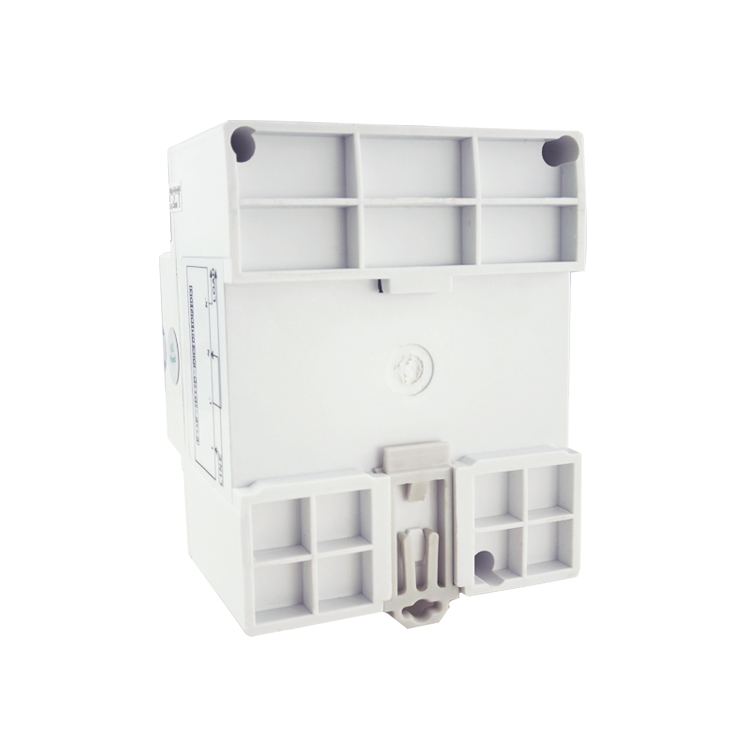

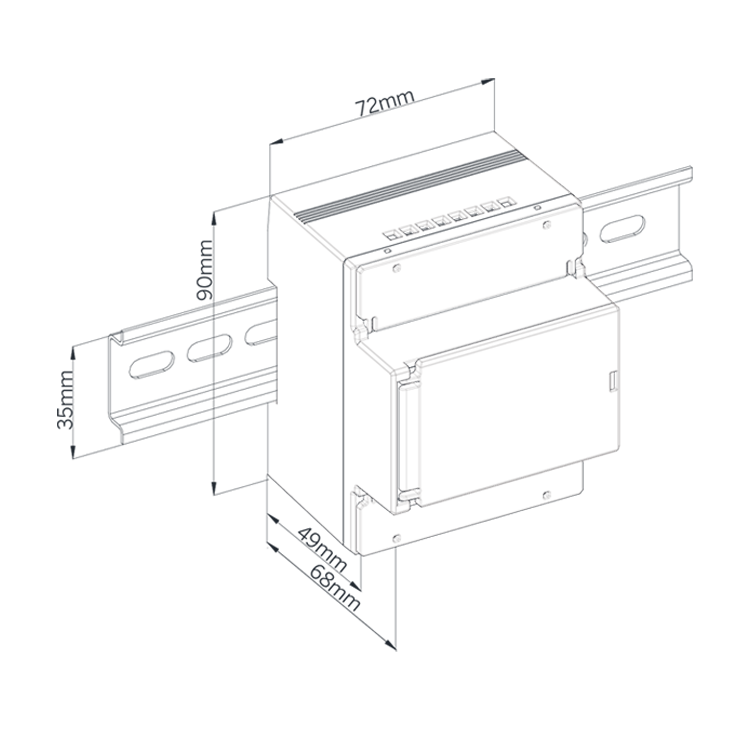

- 35mm DIN Rail, 72x68x90mm
- B&W 8-digit LCD Display
- Harmonics, Demands & TOU, Energy Log and Event Log
- Modbus RTU
- 1xRS-485
- 3xDI, 1xSS Pulse Output
