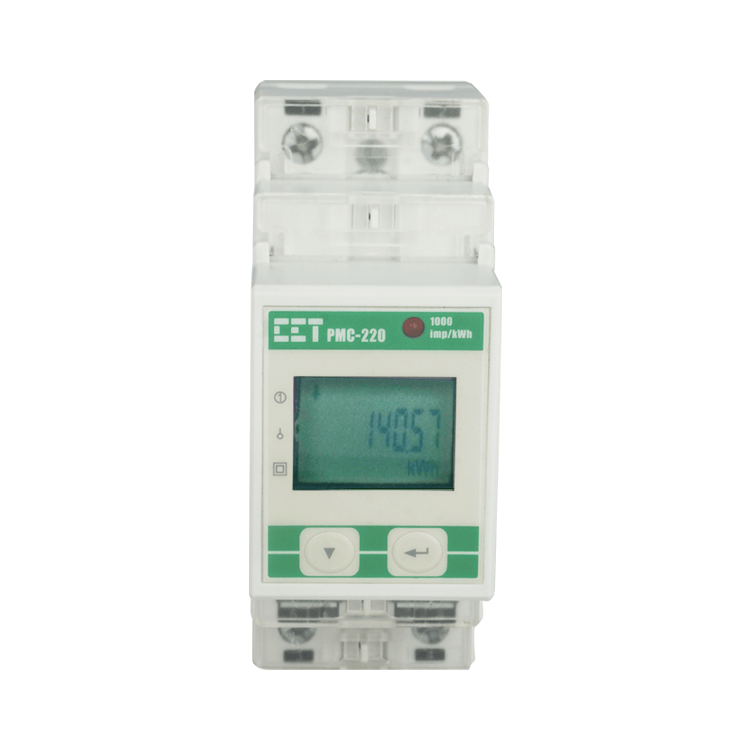

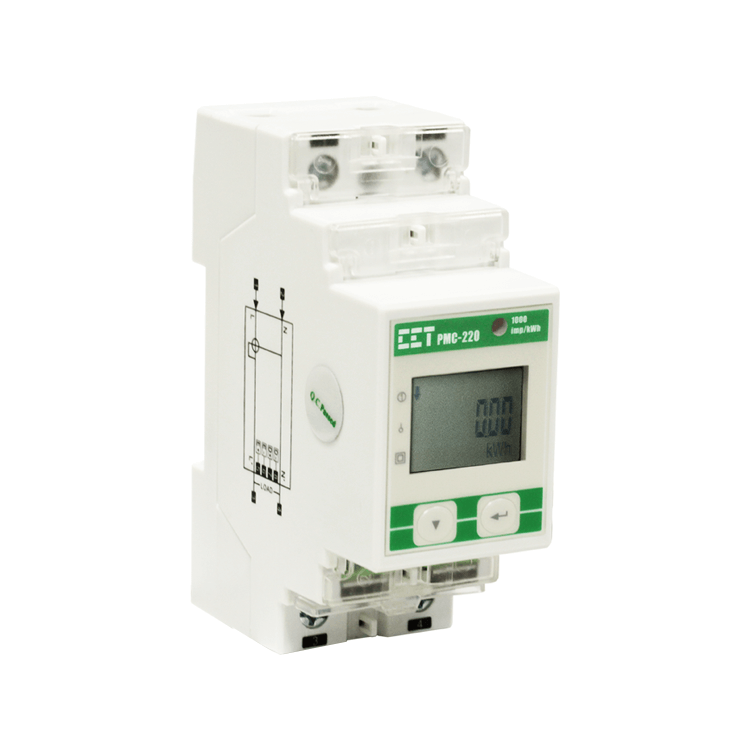

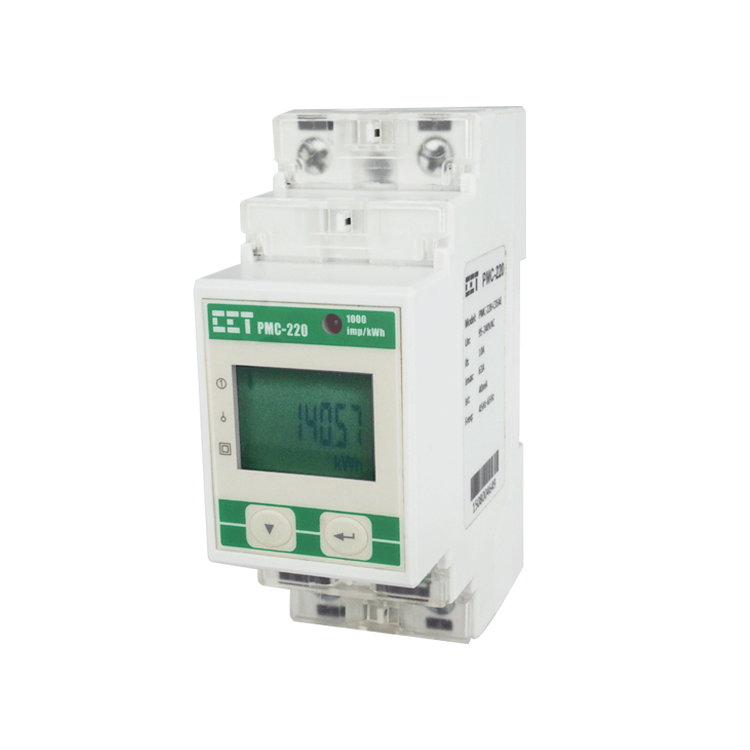

CET PMC-220 Single-Phase Multifunction Meter (DIN Rail mount)
SKU: PMC-220The PMC-220 Single-Phase Multifunction Meter is CET's latest offer for the low voltage energy metering market featuring DIN-Rail mount, compact construction, 63A direct connect input and high accuracy measurements.
The PMC-220 complies with the IEC 62053-21: 2020 Class 0.5 kWh Accuracy Standard. In addition, the PMC-220 has received the Certificate of Approval from the National Measurement Institute (NMI) of Australia and been verified by UL with reference to NMI M6-1 Electricity Meters, Part 1: Metrological and Technical Requirements.
With the standard RS-485 port and Modbus RTU protocol, the PMC-220 becomes a vital component of an intelligent, multifunction monitoring solution for any Energy Management Systems.
Features
- Low-Cost Single-Phase Multifunction Meter
- IEC 62053-21:2020 Class 0.5 (63A Direct Input)
- NMI M6-1 Class 1

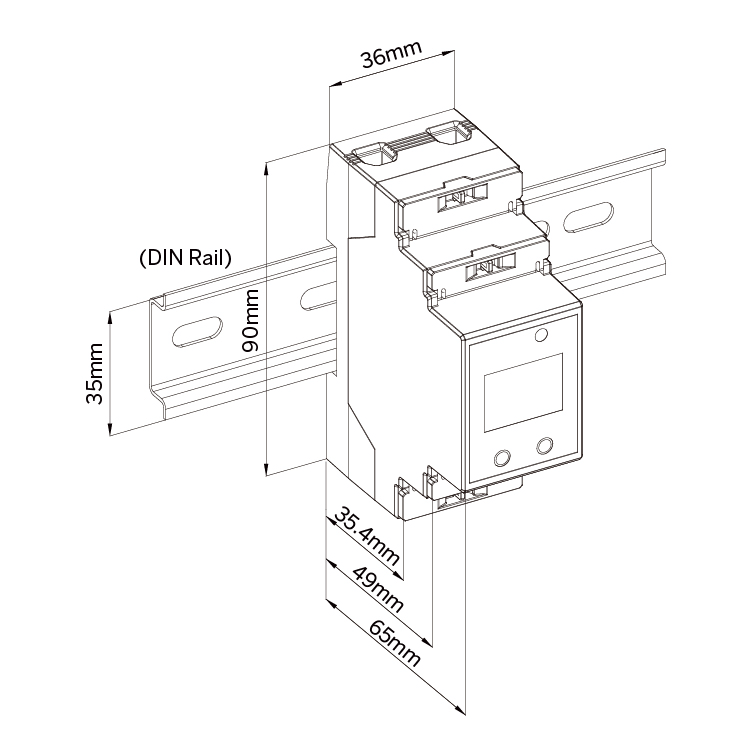

- 35mm DIN Rail, 36x65x90mm
- 6½ Digit B&W LCD Display
- Modbus RTU
- 1xRS-485
- 1xSS Pulse Output
