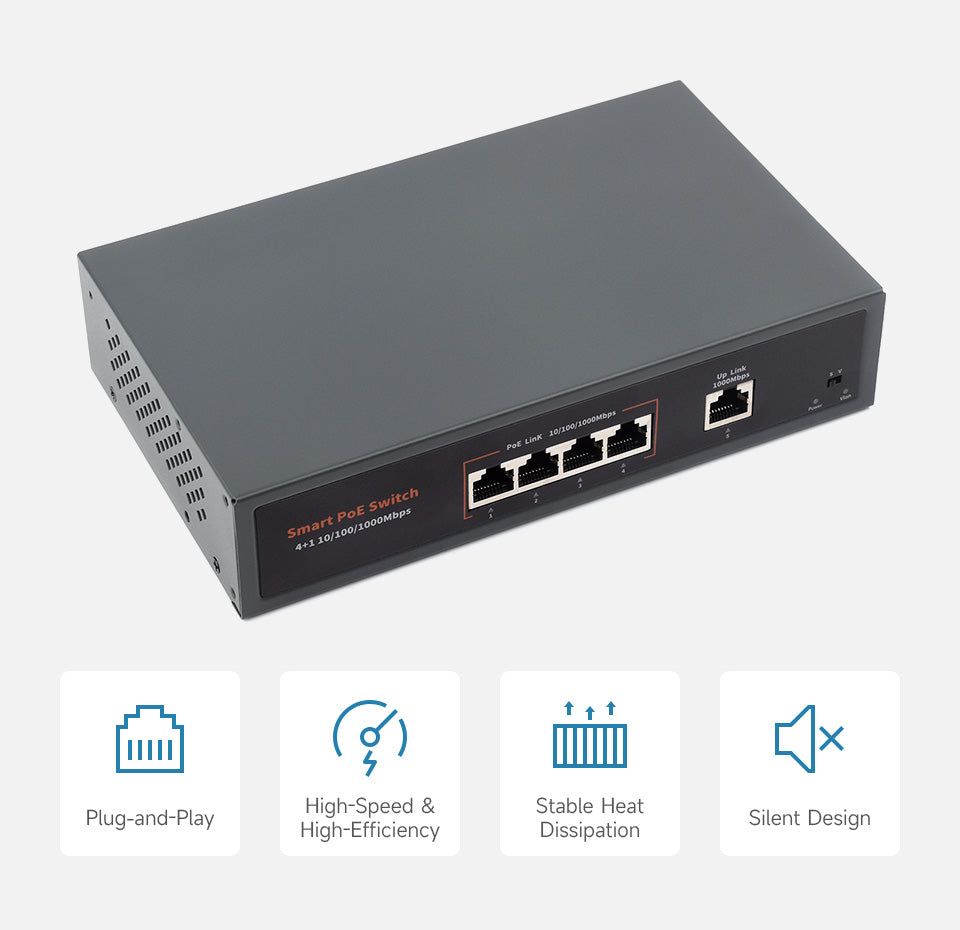

120W Gigabit Ethernet PoE Switch, 4x PoE+ Ports, Up To 30W Per Port, 802.3af/at Compliant, Fanless Design, High-Speed 10/100/1000M Ethernet Port, Network Switch PoE
SKU: WS-POE-SWITCH-120WFeatures at a glance
The Gigabit-PoE-Switch-120W is designed to meet PoE (Power over Ethernet) power supply requirements, adopts the latest generation high-speed Ethernet switching chip and high backplane bandwidth (also known as switching bandwidth) design, features ultra-fast data processing capability, enhancing data transmission performance.

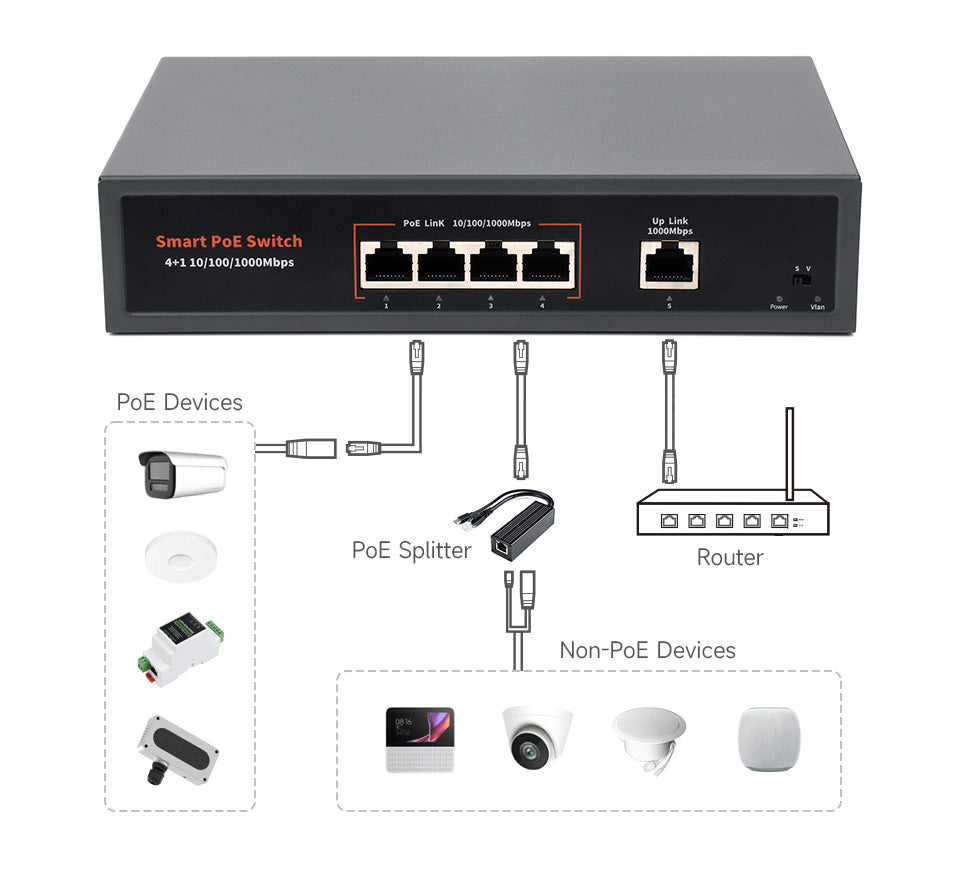

Equipped with 4x PoE RJ45 downlink ports and 1x RJ45 uplink port, up to 30W per port, with a total power of 120W peak. It can automatically detect and identify IEEE 802.3af/at-compliant devices and provides power supply through the network cable.
- 4x 10/100/1000Mbps RJ45 PoE ports (support PoE+ power supply)
- 1x 10/100/1000Mbps RJ45 uplink port
- Total PoE power is up to 120W with each port providing power up to 30W
- Supports priority mechanism that can automatically detect and identify PoE devices, providing power supply through the Ethernet cable with priority, without damaging non-PoE devices.
Specifications
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Ports | 4x 10/100/1000Mbps RJ45 PoE ports 1x 10/100/1000Mbps RJ45 uplink port |
| PoE power supply | 4x 10/100/1000Mbps RJ45 ports with PoE+ power supply support Total PoE power is up to 120W with each port providing power up to 30W |
| PoE connection | Supports 1/2+, 3/6- end-span and 4/5+, 7/8- mid-span wiring pairs |
| Performance | Store and forward, supports 2K MAC address table depth, with 12Gbps backplane bandwidth |
| Forwarding Rate | 10BASE-T: 14880pps/port 100BASE-tx: 148800pps/port 1000BASE-tx: 1488000pps/port |
| Port Functions | Power priority mechanism, fast forwarding, MAC address auto-learning and aging, IEEE802.3x full-duplex flow control and half-duplex backpressure flow control |
| Operation Temperature | Operation Temperature: -20℃ ~ 55℃ Storage Temperature: -20℃ ~ 75℃ |
| Power | Built-in power adapter Input: AC/IN 110V ~ 240V Output: DC 52V±5% 2.3A, ≤120W |
| Enclosure | Metal material |
| Dimensions | 200mm × 118mm × 44mm (L×W×H) |
