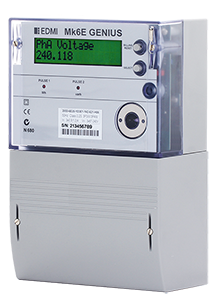

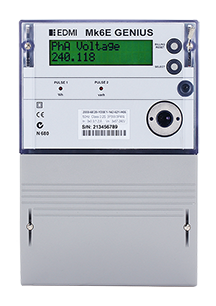

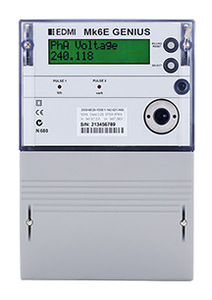

EDMI Mk6E - High Accuracy Three Phase Smart Meter



Our team is here to help, please contact us 1300 METERS.

The Mk6E is an enhanced upgrade of the Mk6 meter, built with a higher class accuracy of 0.2S, catering to the high-end markets. The Mk6E is a high-precision meter created for generation and transmission applications, as well as for revenue metering at high-end consumer facilities.

The price includes the meter programming operation.

Standards and Compliance

  • Class 0.2S and Class 0.5S (MID Class C)
  • IEC 62052-11, 62053-22 (Class 0.2S and Class 0.5S), 62053-23 (Class 2)
  • EN 50470-1 and 50470-3
  • NMI M6

Key Specifications

  • Nominal Voltage: 57V – 240V (phase to neutral)
  • Frequency: 45Hz – 65Hz
  • CT Range: 1/4A, 1/6A, 5/10A and 5/20A
  • Burden: <0.5VA/phase
Dimension and Weight
  • 260mm (H) x 173mm (W) x 93mm (D)
  • Weight: 2 kg (standard) and 2.2 kg (with SCADA card)


     Download MK6E Fact Sheet

     Download MK6E User Manual
